본 제품은 모듈(TX,RX) 세트이며 광케이블은 필요한 길이만큼 시중(LC타입 2가닥)에서 구매가능합니다.
얇고 플렉시블한 광케이블을 사용하며 커넥터가 분리가능하여 배관 또는 좁은공간에 설치가 편리하며 길이별 특성(노이즈)이 없습니다.
추가 길이가 필요한경우 시중에서 판매되는 LC-LC 멀티모드타입 광패치코드를 구입하시면 됩니다. 최대 300M 지원(접속기기에 따라 차이)

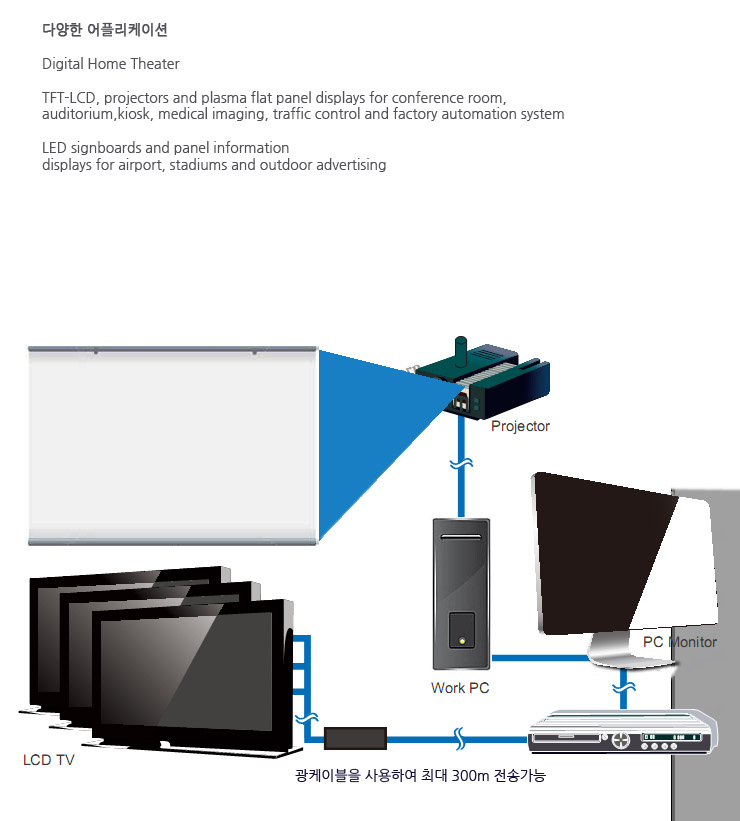

응용 Digital Home Theater, HDTV SYSTEM, HD CCTV, 4K HDTV

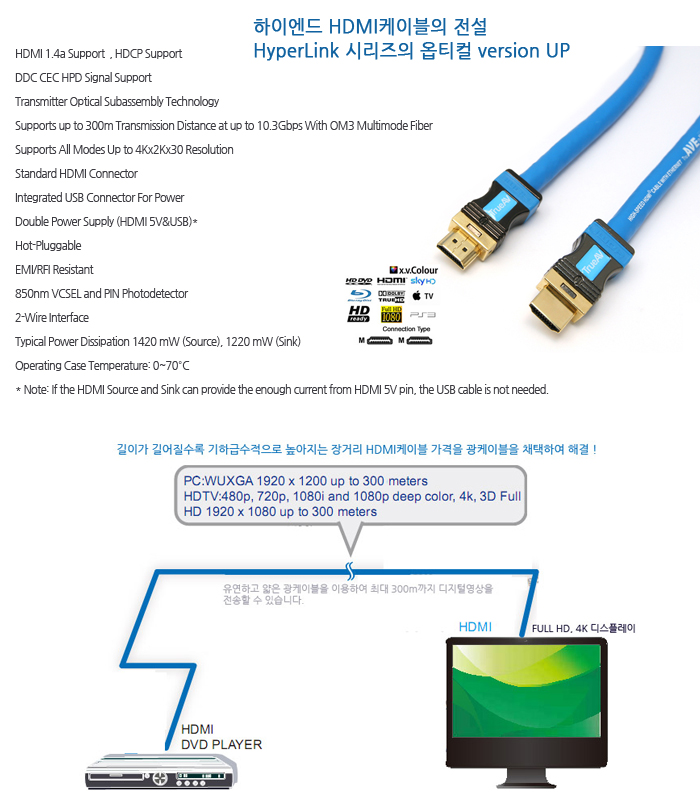

PC:WUXGA 1920 x 1200 up to 150 meters
HDTV:480p, 720p, 1080i and 1080p deep color, 4K, 3D Full HD 1920 x 1080 up to 300 meters. (depends on each device)
HDMI INPUT HDMI 1.4 HD DVD PLAYER, SETTOP BOX, TUNNER
HDMI OUTPUT HDMI 1.4
광패치코드 LC타입 2CORE 멀티모드MM 사용

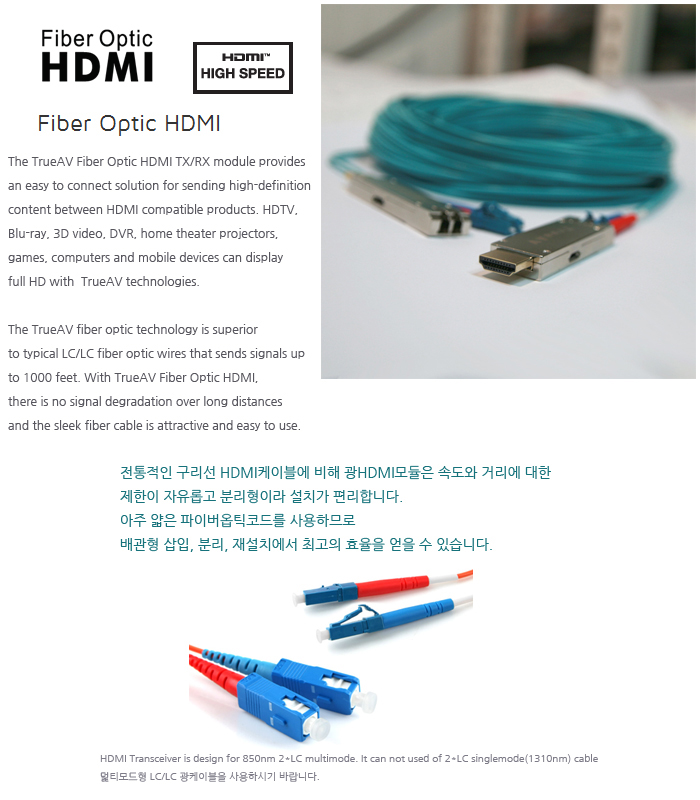

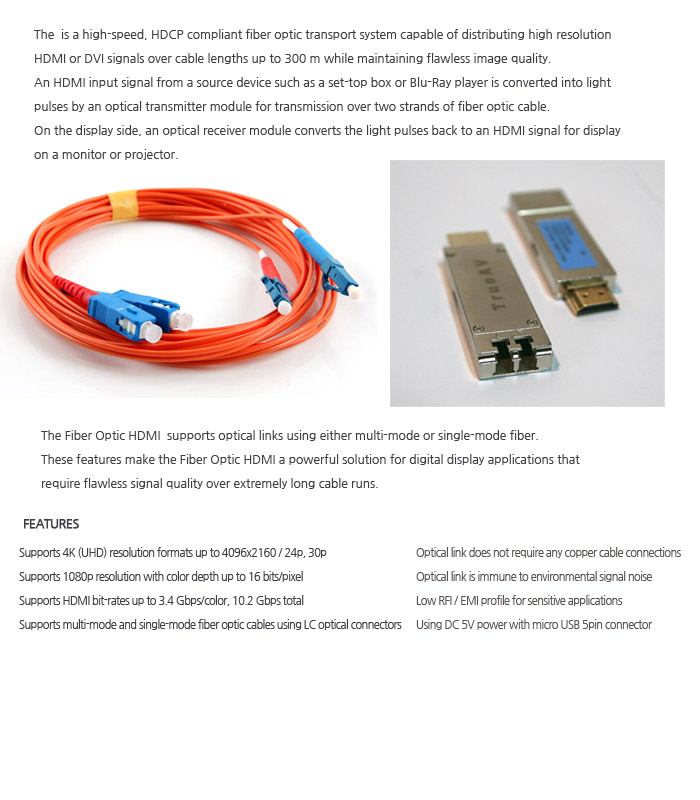

TrueAV HDMI Cable is a kind of Optical Cable used to extend the transmission distance between HDMI Source and Sink devices.
The transmission distance can be up to 300m through a fiber optic patch cable wires.
4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution
Up to 32 audio channels for a multi-dimensional immersive audio experience
Up to 1536kHz audio sample frequency for the highest audio fidelity
Simultaneous delivery of dual video streams to multiple users on the same screen
Simultaneous delivery of multi-stream audio to multiple users (up to 4)
Support for the wide angle theatrical 21:9 video aspect ratio
Dynamic synchronization of video and audio streams
CEC extensions provides expanded command and control of consumer electronics devices through a single control point
HDMI 2.0, which is backwards compatible with earlier versions of the HDMI specifications, significantly increases bandwidth up to 18Gbps and adds key enhancements to support continuing market requirements for enhancing the consumer video and audio experience.
HDMI 2.0 does not define new cables or new connectors. Current High Speed cables (Category 2 cables) are capable of carrying the increased bandwidth.
