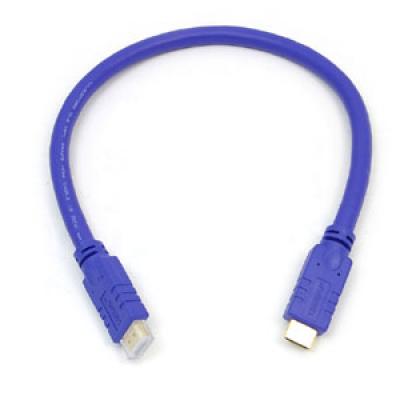

미국 TRUEAV CL2 HDMI 케이블은 동선기반의 최장 25M 케이블로써, CL2 HDMI 케이블은 480i, 480p, 720p, 1080i, 1080p에 해상도를 지원합니다. 또한 차세대 HDMI버젼인 HDMI 1.3버젼에 완벽한 호환성을 제공합니다.
CL2 HDMI 케이블은 소스 기기들과의 좋은 설치 호환성을 자랑합니다.
CL2 HDMI 케이블은 DVI 커넥터보다 좀 더 사용자에게 친숙하고 작은 커넥터를 채용하였습니다. 또한 비압축성(프로그래시브) 영상과 다중채널 음성(5.1채널 돌비음향) 두 가지를 하나에 케이블로 해결하는 고대역 제어 스펙을 제공합니다.
TrueAV High Speed HDMI Coppper based series with Ultral long length
Copper based cables with max lengths of 25m. The HDMI CL2 cables support the following resolutions: 480i, 480p, 720p, 1080i, 1080p.
These cables are rated for in-wall installations.
HDMI is a much smaller and user-friendly connector than the DVI connector. The specification handles high-bandwidth, uncompressed video and multi-channel digital audio as well, all in one cable.
High-Definition Multimedia Interface (HDMI) is the first industry-supported, UNCOMPRESSED audio/video interface. This cable connects HDMI devices for DVD, satellite boxes, LCD, projectors, plasma and HDTVs. HDMI provides an interface between any HDMI-enabled audio/video source, such as a set-top box, DVD player, and A/V receiver and an audio and/or video monitor or projector.
HDMI supports standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable. It transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements and requirements.
| TrueAV High Speed HDMI Coppper based series |
|
Conductor is composed by 28-24AWG Tinned copper
Gold plated contact
Twins shielding for rejection RF & EMI
Outer mesh providing extra protection and fricative
Embossed HDMI logo outer connector |
 |
| Features... |
|
New Release - support HDMI 1.3 (Category 2 - 1080p)
Fully support 1080p
100% Digital - No compression, no conversion
Pure digital picture and sound direct from the source
All your HD video and audio in one cable
Replace up to 8 audio and 5 video cables
Type A connector (19 positions) carries a single TMDS link and is permitted to carry signals up to 165Mpixels/sec.
3.3 Gigabits/second of bandwidth to support video and multi-channel audio in a single cable
Bandwidth to spare for HDTV - 1080p capable and beyond and over two times 1080i bandwidth
Backwards compatible with DVI and DVI-HDTV
Uses HDCP for content protection, allowing access to high-value programming
All current HDMI products support 480p, 1080i and 720p, even 1080p |
| Specification... |
Available Production Lengths: 0.5m, 1m, 2m,3m, 5m, 10m, 15m, 20m, 25m
100% open and short test
Conductor resistance: 5 Ohm (max.)
Contact Resistance: 30m Ohm (max)
Insulation resistance: 10M Ohm/DC300V at 0.01sec
Differential mode impedance: 100+/-15 Ohm, assembly, 100+/-10 Ohm, cable
Signal pairs attenuation:
=< 8 dB, 300 KHz to 825 MHz
=< 21 dB, 825 MHz to 2.475 GHz
=< 30 dB, 2.475 GHz to 4.125 GHz
Intra-pair skew: < 151 ps
Differential mode FEXT: > 26 dB Above testing conditions are available for length less or on 25 meters |
TrueAV Advanced for HDMI 1.3 version Performance Capabilities
12-Bit Color**
Smoothest Gradation of Colors
Greater cable capacity for support of 12-bit color, also called Deep Color™, available from advanced HD sources and displays. Greater color depth, from 8-bit to 12-bit, allows more detailed gradations of individual colors for the display of billions of colors.
x.v.Color™***
Extended Color Range
Ideal for advanced HDTVs with xvYCC color, also called x.v.Color. x.v.Color widens the number of available colors for 1.8 times more colors than standard RGB.
Dolby? TrueHD and DTS-HD™
Lossless Surround Sound
Greater cable bandwidth for support of Dolby TrueHD and DTS-HD lossless surround sound, available on Blu-ray Disc™ and HD DVD™ movies.
HDMI-CEC
Automated Audio/Video Control
Support for the HDMI Consumer Electronics Control channel, enabling automated audio/video component setup and control.
120 Hz Display***
Smooth Video™ Refresh Rate
Ideal for HD components with 120 Hz refresh rates, providing smoother, more fluid video reproduction.
HDMI is a data superhighway for digital video and audio. For the best high definition experience, use an HDMI cable that delivers all the picture and sound data your HD components require. Get all your HDMI questions answered at TrueAV.com/HDMI.
MODELS : TrueAV High Speed HDMI Coppper based series
| MODEL |
type |
length |
AWG |
| TV0005 |
HDMI - HDMI |
0.5m |
24AWG |
| TV0010 |
HDMI - HDMI |
1.0m |
24AWG |
| TV0020 |
HDMI - HDMI |
2.0m |
24AWG |
| TV0030 |
HDMI - HDMI |
3.0m |
24AWG |
| TV0050 |
HDMI - HDMI |
5.0m |
24AWG |
| TV0100 |
HDMI - HDMI |
10.0m |
24AWG |
| TV0150 |
HDMI - HDMI |
15.0m |
24AWG |
| TV0200 |
HDMI - HDMI |
20.0m |
24AWG |
| TV0250 |
HDMI - HDMI |
25.0m |
24AWG |
|
