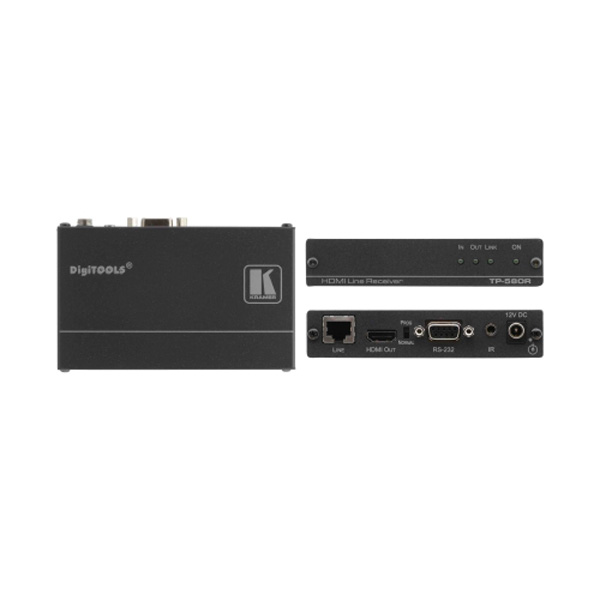

The TP−580R isa 4K UHD, twisted pair receiver for HDMI, bidirectional RS−232 and IR signals. It supports resolutions up to 4K@60 UHD (4:2:0). The TP−580T converts HDMI, RS−232, and IR signals into a twisted pair signal that it transmits to a TP−580R receiver. The TP−580R converts the twisted pair signal back into HDMI, bidirectional RS−232 and IR signals.
* 본 제품은 본 제품 하나로만 사용할 수 없으며, 아래에 링크를 걸어둔 송신기 제품과 함께 써야 하는 제품입니다.
http://www.polyav.com/m_mall_detail.php?ps_ctid=0004001300030000&ps_goid=14711
-
Resolution Support. - Up to 4K@60 UHD (4:2:0).
-
Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
-
HDTV Compatible.
-
HDCP Compliance.
-
HDBaseT™ Technology.
-
HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
-
3D Pass-Through.
-
EDID PassThru - Passes EDID signals between the source and display.
-
Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit.
-
System Range - Up to 70m (230ft).
-
Cable - For optimum range and performance using HDBaseT™, use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.
-
Indicators - Status LEDs for input, output, link and power.
-
Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional
RK−3T universal rack adapter.
